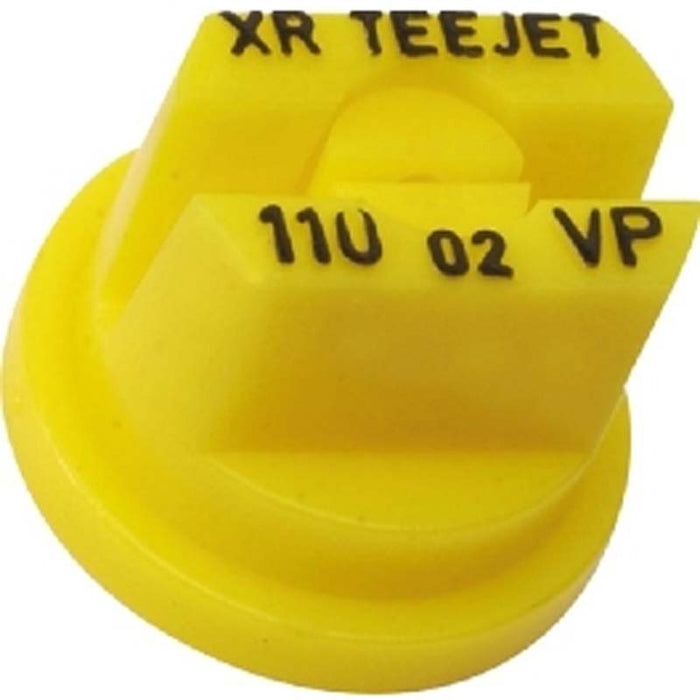

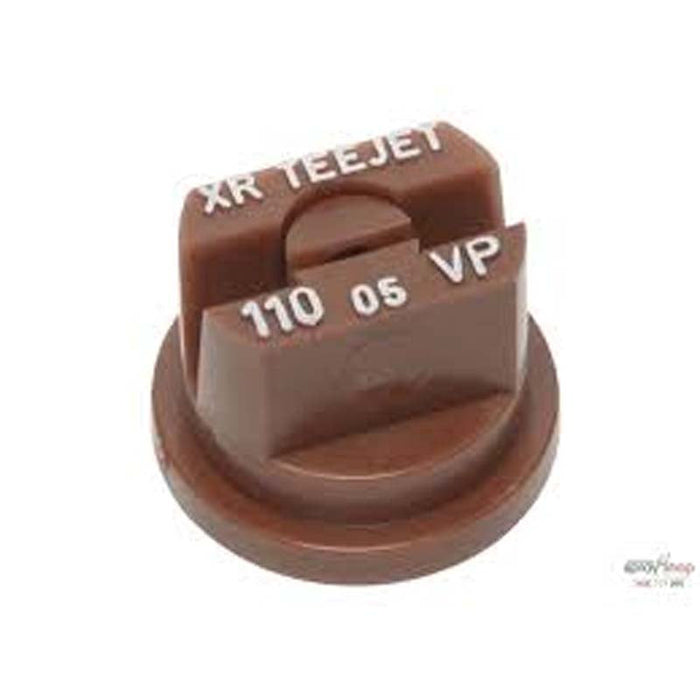

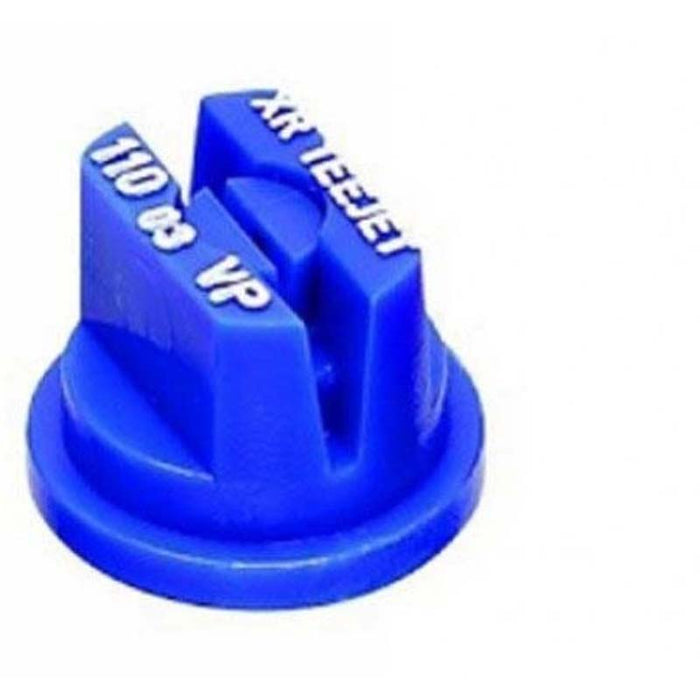

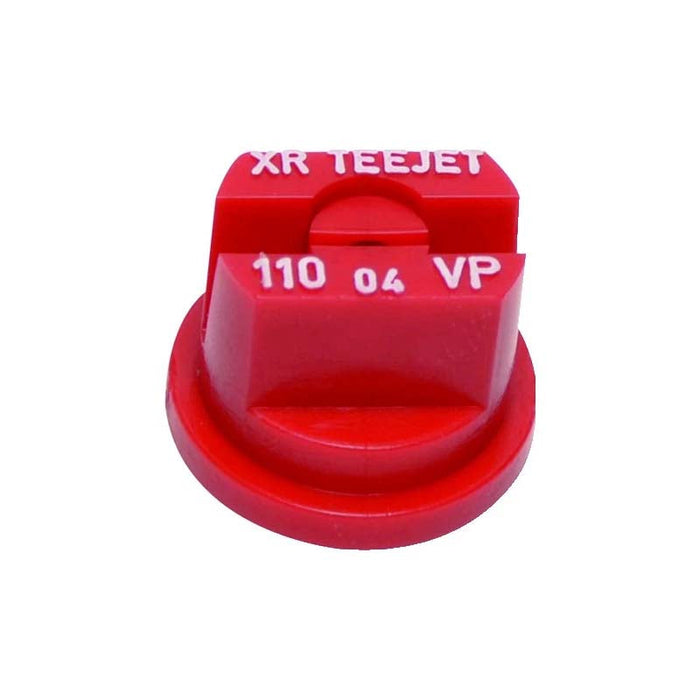

Teejet Xr Spray Nozzles...Sizes 015(Green) To 06 (Grey)

SKU: XR110015VP
Sale
Original price $7.60
Current price $5.30
Size

Bundle & Save

Product Information

Genuine Imported TEEJET Nozzle from USA

110 degree flat fan nozzle with an ideal operating range of 1-4 bar with a fine to course droplet size. This nozzle produces a larger droplet at lower pressures, reducing drift and a finer droplet size at higher pressures ensuring better coverage.

The XR TeeJet® is an extended range flat fan spray tip for low-volume applications providing high-quality droplet size and ground distribution. The tapered edge flat spray angle pattern produces uniform coverage in broadcast spray applications with reduced drift at lower pressures and better coverage at higher pressures.

Aligns with 114441 cap and gasket

For more information or just to have a yarn, call us on 1300 326 453

Shipping

Dispatch in less than 48 hours unless it is an oversized item and is being shipped from a partner warehouse. Free shipping to most areas of Australia for orders over $400 Express Shipping & Local Dubbo Pickup available Please note, Australian orders are shipped and by default will require Signature on Delivery…

Benefits

  • Excellent spray distribution over a wide range of pressures 15-60 PSI (1-4 bar).
  • Reduces drift at lower pressures.
  • Better coverage at higher pressures.
  • Ideal for rigs equipped with sprayer controllers.

Features

  • Tapered edge flat spray angle pattern for uniform coverage in broadcast spray application.
  • Ceramic is available with corrosive resistant polypropylene VisiFlo color-coded tip holder in 80° capacities 03–08 and 110° capacities 02–08.

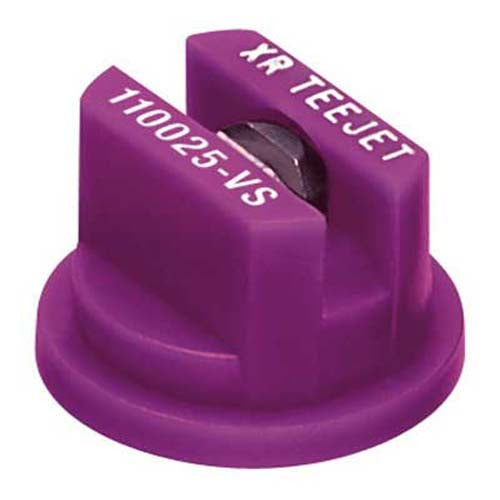

  • XR110025 is only available in VK.
  • XR80025 and XR80035 are only available in VS.
  • Brass is available at 110° only.
  • Automatic spray alignment with 114441A-*-CELR (01 to 08) or 114443A-*-CELR (10 and 15) Quick TeeJet® cap and gasket.

Recommendations

Best results are achieved when used under the following conditions:

  • No wind or winds < 5 Km/hour.
  • Hydrometry greater than 80%.
  • Optimum operating pressure ~ 1.4 Bar.
  • To limit drift, use at low pressure (< 1.8 Bar).
  • We recommend XR 80° VS with a capacity of 01, 015, and 02 for low volume application, and ceramic tips for all other capacities.

Applications

Contact Fungicides

Application image: Contact Fungicides

Contact Insecticides

Application image: Contact Insecticides

Contact Herbicides

Application image: Contact Herbicides

Distribution

Lab Distribution Test

Distribution image: Lab Distribution Test

Field Distribution Test

Distribution image: Field Distribution Test

Droplet Size

Fine

Droplet Size image: Fine

Medium

Droplet Size image: Medium

Coarse

Droplet Size image: Coarse

Accessories

Cap

Accessories image: Cap

Seat Gasket

Accessories image: Seat Gasket

Strainer

Accessories image: Strainer

Brass Strainer

Accessories image: Brass Strainer

Stainless Steel Strainer

Accessories image: Stainless Steel Strainer
