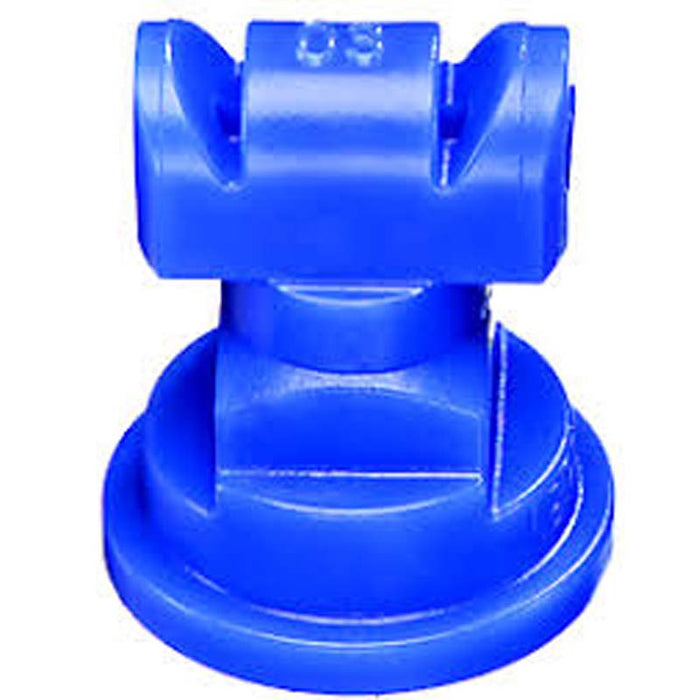

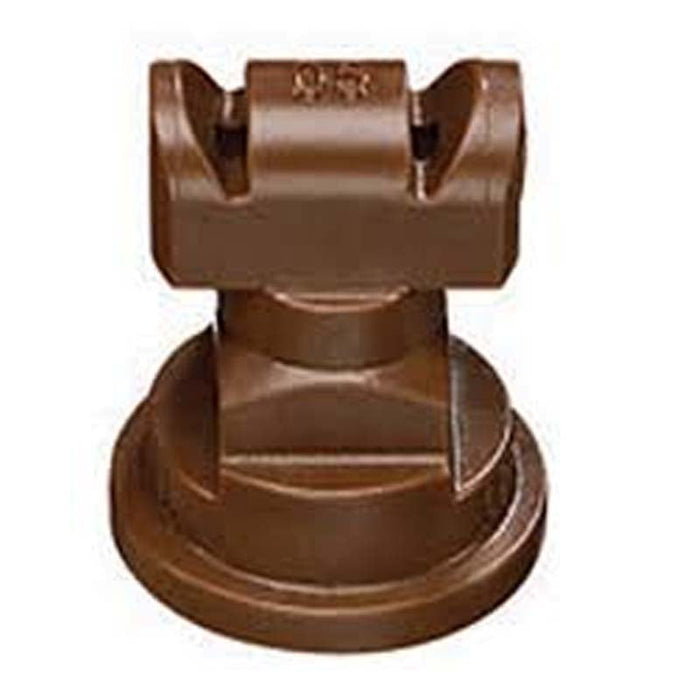

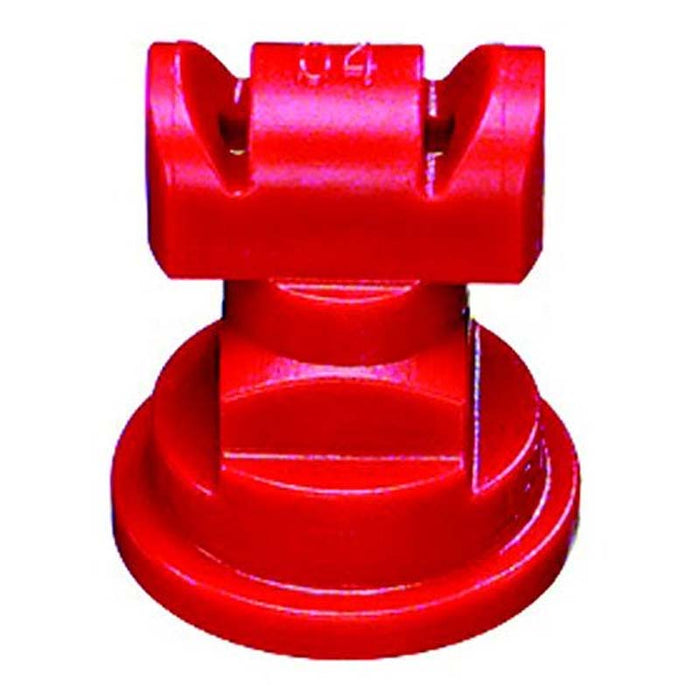

Teejet Ttj60 Spray Nozzles. Sizes 02 (Yellow) - 06 (Grey).

SKU: TTJ6011002VP
$12.70
Size

Product Information

The Turbo TwinJet® (TTJ60) is ideal for applying fungicides, insecticides, or herbicides. Its twin style flat spray tip is best suited for broadcast spraying where superior leaf coverage and canopy penetration are important.

Genuine TEEJET nozzles imported from USA, TTJ60

Dual 110 degree angled Spray patterns, 60 degrees apart, one facing forward and the other facing backwards helps to penetrate thick foliage. Excellent balance of coverage, penetration and drift control.

Droplet size is slightly larger than for the same capacity  Turbo Teejet Nozzles.

For more information or just to have a yarn, call us on 1300 326 453


Shipping

Dispatch in less than 24 hours unless it is an oversized item and is being shipped from a partner warehouse. Free shipping in Australia for orders over $400 Express Shipping & Local Dubbo Pickup available Please note, Australian orders are shipped and by default will require Signature on Delivery…

Specifications

Pressure range 1.5bar - 6 bar.

Available in sizes 02 (yellow) - 06 (Grey)

For more information or just to have a yarn, call us on 1300 326 453

Benefits

  • Excellent for penetration of dense canopy and achieving thorough coverage.
  • Two 110º spray patterns spraying 60° apart, one in the forward direction of travel; one in the aft.
  • Pulse Width Modulation (PWM) Approved.
  • Flow rates and droplet sizes available to meet a wide range of applications.
  • Acetal construction for excellent chemical and wear resistance.

Features

  • Droplet size range is slightly larger than the same capacity Turbo TeeJet nozzle providing drift-reducing properties with increased canopy coverage and penetration.
  • Available in eight VisiFlo® Polymer (VP) capacities.
  • Automatic spray alignment with Quick TeeJet cap and gasket 114441A-*-CELR.

Application

Application single image }}

Examples

Corn Crop Development

Example image: Corn Crop Development

Cotton Crop Development

Example image: Cotton Crop Development

Soybean Crop Development

Example image: Soybean Crop Development

Wheat Crop Development

Example image: Wheat Crop Development

Distribution

TTJ60 11004-VP at 8.5 GPA = 79.5 l/min, 43.5 PSI = 3 bar, 7.5 MPH = 12 km/h (Water temperature 70°F (20°C))

Distribution image: TTJ60 11004-VP at 8.5 GPA = 79.5 l/min, 43.5 PSI = 3 bar, 7.5 MPH = 12 km/h (Water temperature 70°F (20°C))

Performance

Performance image: ttj60spraytipdetails

Flow Simulation

Accessories

Cap with Gasket

Accessories image: Cap with Gasket

Strainer with Gasket

Accessories image: Strainer with Gasket

Strainer

Accessories image: Strainer

Brass Strainer

Accessories image: Brass Strainer

Stainless Steel Strainer

Accessories image: Stainless Steel Strainer
