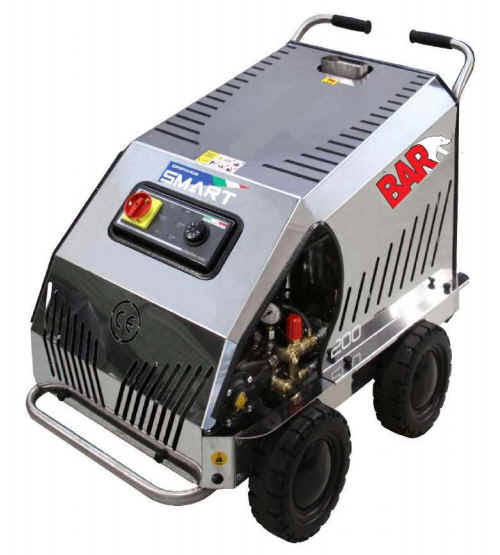

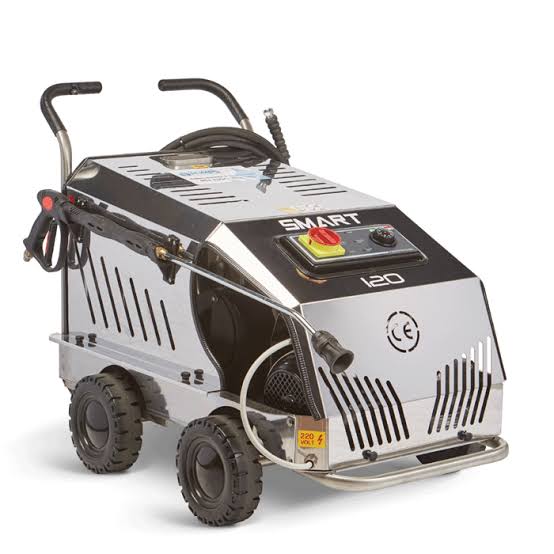

Bar Group Hot Water Single Phase Pressure Cleaner
B.A.R. Group 108 HOT12/11 SI SMART is a professional-grade single-phase hot water electric pressure cleaner designed for workshops, transport fleets, food processing, agriculture, and industrial cleaning where grease, oil, and heavy soiling are common.
For more information or just to have a yarn, call us on 1300 326 453
Specifications
The SMART range is the new generation stainless steel hot high pressure cleaners
430 Stainless steel cover and frame
Automatic stop
Built-in fuel tanks
Detergent suction and dispends in low pressure
Stainless steel vertical boiler with air cooling and cooling fan motor with independent control and adjustable combustion optimizer
Bottom boiler in refractory cement (thickness of 4 cm), resistant to thermal shock
Steel coil
- Pressure: 1,740 PSI (120 bar)
- Flow rate: 11 L/min
- Maximum water temperature: 80°C
- Motor: 2.2 kW electric motor
- Power supply: 240 V, single-phase, 15 A
- Pump speed: 1,450 RPM
- Pump: Comet LW-K2020 Italian triplex pump (current model; earlier units used an Interpump Evo 212 pump)
- Weight: Approximately 100 kg
- Dimensions: 900 × 810 × 630 mm (L × W × H)
The S.A.T. stops the machine a few seconds after the gun’s trigger is released to avoid unnecessary machine interruption. To restart, press the gun trigger.
The DMA manages the absence of water by stopping the machine and signalling the absence of water with a red light on the panel control. This system prevents the pump from working without water. When normal conditions are restored, put the selector in position “Zero” and restart the machine.
SMART machines stop in cases of temporary voltage interruption. When the normal conditions are restored, put the selector in position “Zero” and restart the machine.
If the fuel is empty the machine stops the solenoid and burned ignition and indicates the problem with a red light on the panel control. When normal conditions are restored, put the selector in position “Zero” and restart the machine.
