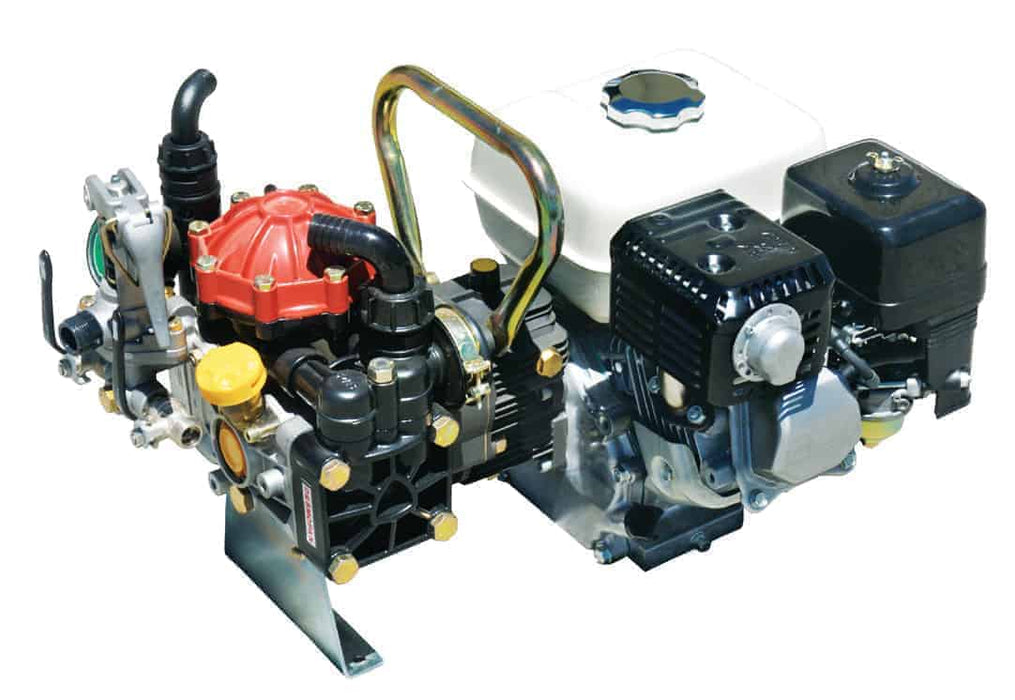

Annovi Reverberi Diaphragm pump, 30LPM, 40 BAR

$2,550.00

Annovi Reverberi Diaphragm pump, 35LPM, 40 BAR

Annovi Reverberi 30 series is a medium pressure diaphragm pump, 30lpm 40BAR spray pump, the unit is a semi-hydraulic two-diaphragm pump.

Parts in contact with pumped liquids in Rilsan-coated aluminium, and AISI 303/304. Diaphragms in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.

Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Imagine shown with handle, handle not supplied.

Specifications

  • Italian built diaphragm pump
  • Powered by a Honda 6.5HP GX200 engine
  • max flow of 30L/MIN
  • Max pressure of 40Bar (580PSI)
  • Can handle a max temp of 60 degrees

 For exploded parts list click the link: AR30 parts break down
