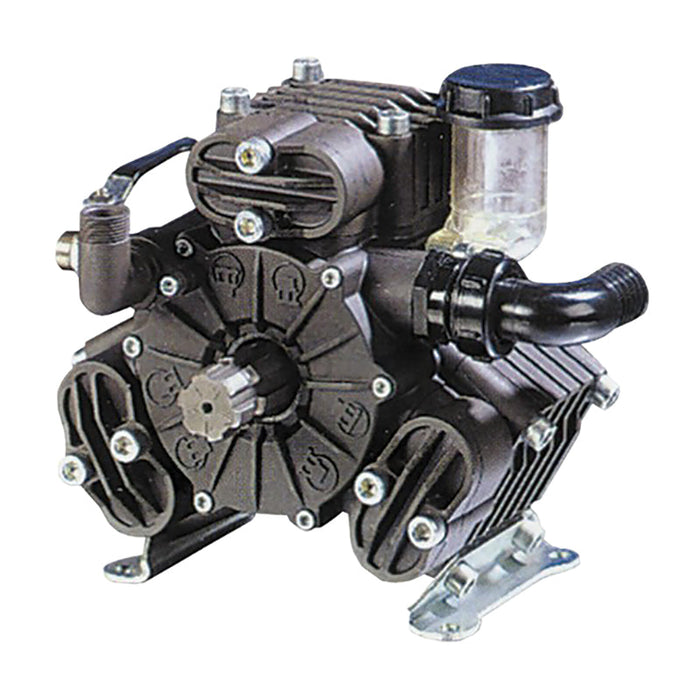

Bertolini PA 530 Diaphragm Pump

SKU: 23.6004.97
$1,925.00
Pump Input Shaft Codes

Information

Bertolini PA430 medium pressure diaphragm pump, 40lpm 40BAR, 1" HB suction input, 1/2" BSP Press output, 4HP Complete with Single Input 6 hole flange.

Bertolini PA330, PA430, PA530 and PA730 Series pumps feature the latest three-cylinder pump technology. Constructed from anodised aluminium with 316SS valves and BUNA pre-deformed diaphragms for maximum life.

Suitable for high-pressure gun spraying and small booms

 Specifications

  • 54 l/min
  • 40 Bar
  • 1 11/2'' Hose Barb suction input
  • 1/2" BSP pressure output


There are outlet options with this pump. Please select your preferred option at the top of the page.

For exploded parts information, click this link - exploded parts diagram

Downloads
